Specs
| Brand | Dorian Tool |
| Manufacturers Part Number | 73310158432 |
| Thread Type | External |
| Hand of Holder | Right Hand |
| Toolholder Style | SE |
| Series | Laydown?˜Jet Stream |

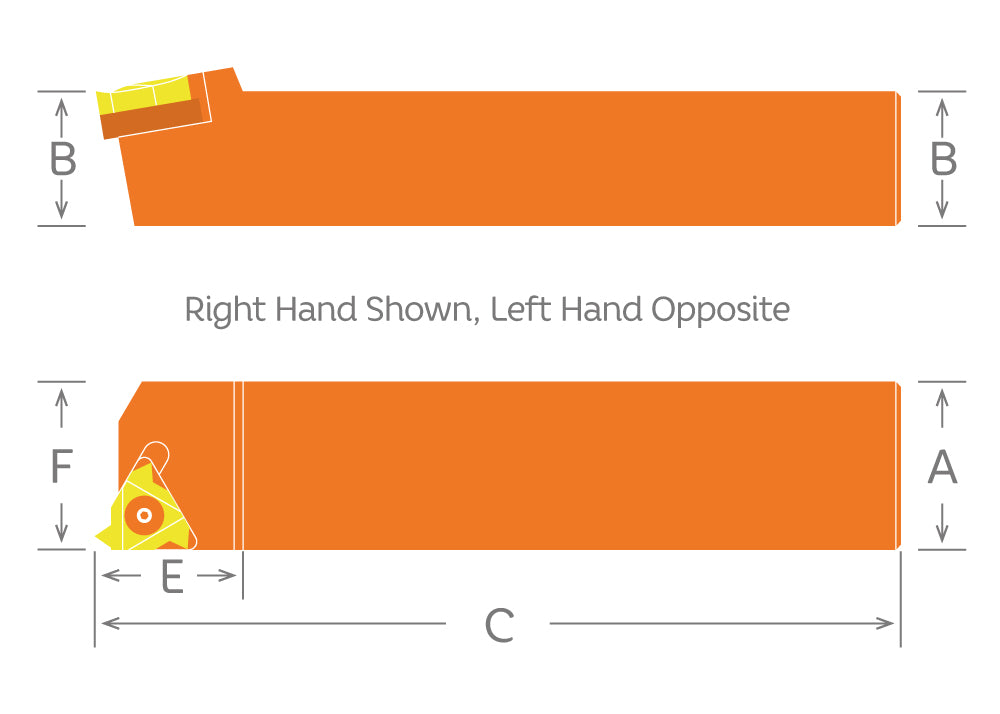

| A- Shank Width/Diameter (mm) | 19.05 |
| A - Shank Width/Diameter (Decimal Inch) | 0.7500 |
| A - Shank Width/Diameter (Inch) | 3/4" |
| B - Shank Height | 3/4" |
| B - Shank Height (Decimal Inch) | 0.7500 |
| C - Overall Length (Inch) | 5" |
| C - Overall Length (Decimal Inch) | 5.0000 |
| C - Overall Length (mm) | 127.00 |
| E?˜(Decimal Inch) | 0.900 |
| F?˜(Decimal Inch) | 0.750 |
| Insert Compatibility | Laydown 16-G60 |
| Shim Sear | GXE-16 |
| Insert Torx Screw | TS-16 |
| Torx Key | T-10 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) |
0.7500 |
| Head Length (Decimal Inch) | 0.9000 |
| Shank Length (Decimal Inch) | 4.1000 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
