Features and Benefits

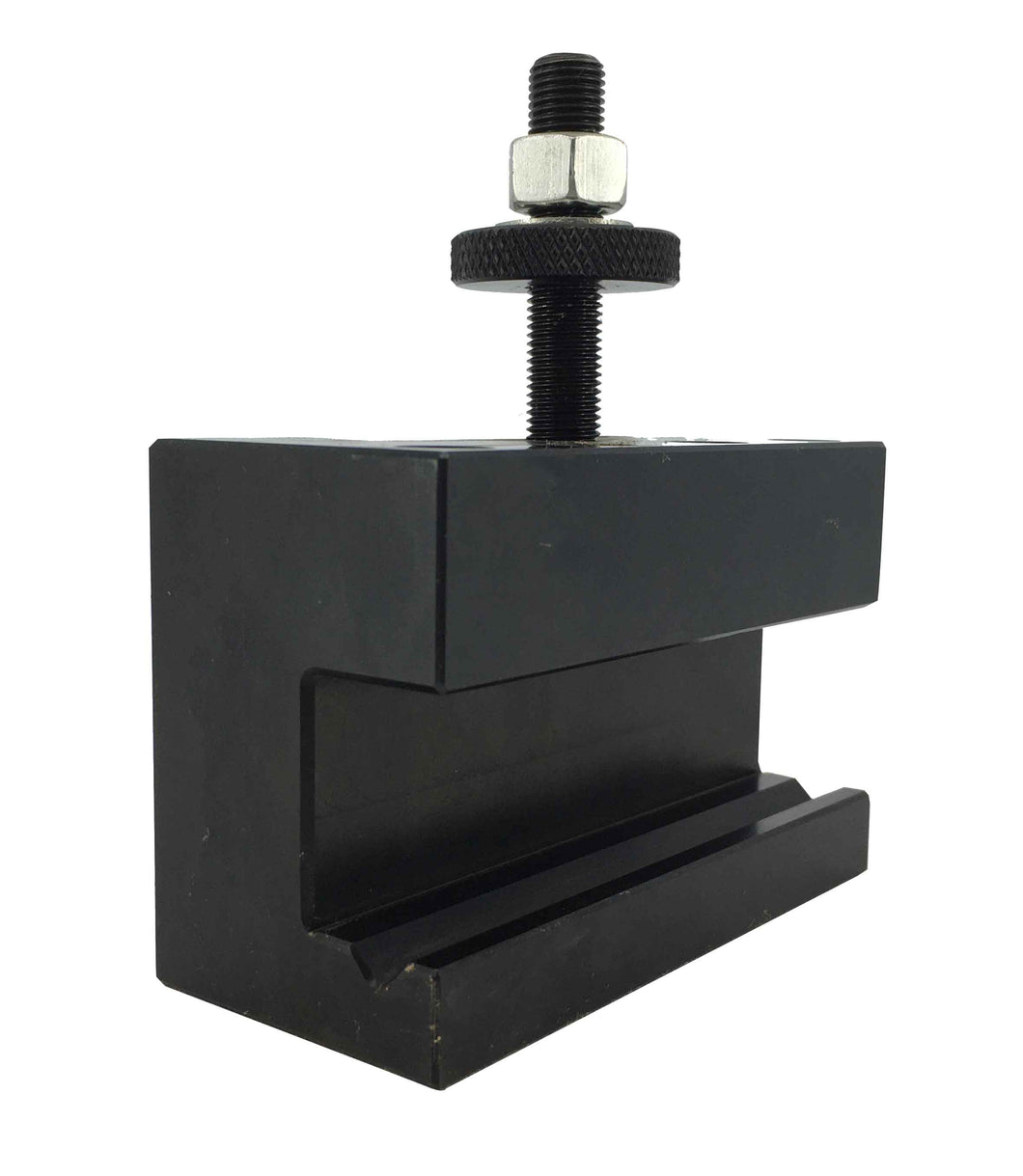

-The Ÿ??VŸ?� groove makes this holder more versatile so that it can hold either square shank tool holders or boring bars.
Specs
| Brand | Dorian Tool |
| Manufacturers Part Number | 73310101404 |
| Series | CXA |
| Tool Post Holder Number | 2 |
| Tool Post Holder Type | Boring, Turning & Facing Holder |
| Lathe Swing (mm) | 350 to 430 |
| Lathe Swing (Inch) | 14 to 17 |
| Through Coolant | No |
| Overall Height (mm) | 63.50 |
| Overall Height (Inch) | 2-1/2" |
| Overall Height (Decimal Inch) | 2.2500 |
| Overall Length (mm) | 95.25 |
| Overall Length (Inch) | 3-3/4" |
| Overall Length (Decimal Inch) | 3.7500 |
| Maximum Cutting Tool Size (mm) | 25.40 |
| Maximum Cutting Tool Size (Inch) | 1" |
| Centerline Height (mm) | 41.28 |
| Centerline Height (Inch) | 1-5/8" |
| Centerline Height (Decimal Inch) | 1.6250 |
