| Brand | Quality Imports |
| MPN | 202-3527 |
| Live Center?˜Category |
Live Centers |
| Nose Style |
Standard Point |
| Shank SIze |
Morse Taper 6 |

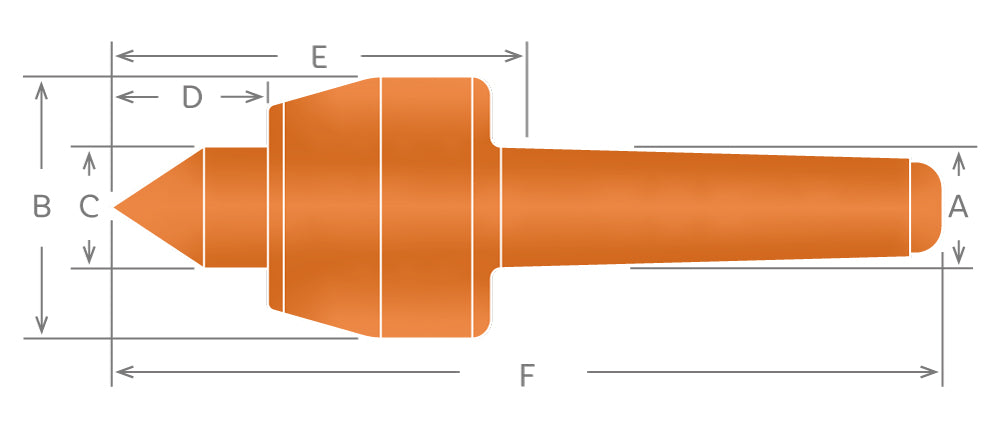

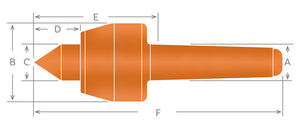

| A - Shank Diameter (Decimal Inch) | 2.4900 |
| B -?˜Head Diameter (Decimal Inch) | 4.1700 |
| C -?˜Point Diameter (Decimal Inch) | 2.1300 |
| D -?˜Point Length (Decimal Inch) | 2.3600 |
| E - Point and?˜Head Length (Decimal Inch) | 5.9800 |
| F - Total Length (Decimal Inch) | 13.1500 |
| Max RPM |
2000 |
| Load Capacity LBS |
3307 |
| TIR (Inch) |
0.00019 |
