Features and Benefits
-The Triple Action Wedge-Locking System is a powerful combination of a downward, outward and inward force simultaneously locking the holder.?˜
Specs
| Brand | Dorian Tool |
| Manufacturers Part Number | 73310101004 |
| Type | Quick Change Tool Post - Wedge Type |
| Series | CXA |
| Lathe Swing (mm) | 350 to 430 |
| Lathe Swing (Inch) | 14 to 17 |
| Through Coolant | No |

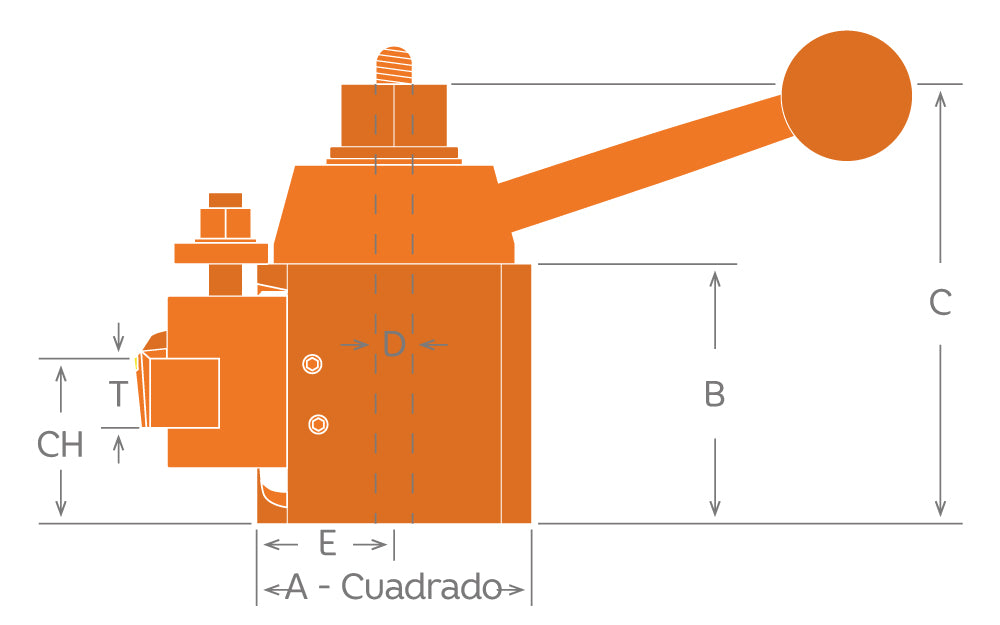

| A - Base Width (Decimal Inch) | 3.500 |
| B -?˜Body Height (Decimal Inch) | 3.250 |
| C - Height to Nut (Decimal Inch) | 5.650 |
| D -?˜Bolt Hole Diameter (Decimal Inch) | 0.750 |
| E - Center to Edge (Decimal Inch) | 1.199 |
| T - Tool Capacity | 3/4" - 1" |
| Holding Post Thread | 3/4-16 |
| Overall Height (Inch) | 6-3/4" |
| Centerline to Handle Edge (Inch) | 9-5/16" |
| Optimum Center Height (Decimal Inch) | 1.625 |
| Minimum Center Height (Decimal Inch) | 1.250 |
| Maximum Center Height (Decimal Inch) | 2.250 |
| Repeatability (Decimal Inch) | 0.000100 |
