| Brand | Quality Imports |
| MPN | 202-5434 |
| Lathe Chuck Category | Self Centering Scroll Chucks |

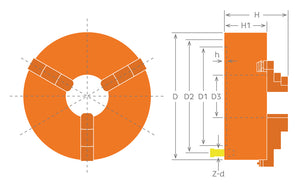

| D - Chuck Size (Decimal Inch) | 8.0000" |
| D1 -?˜(Decimal Inch) | 6.4960" |
| D2 -?˜Bolt Circle Diameter (Decimal Inch) | 7.0870" |
| D3- Thru Hole Size?˜(Decimal Inch) | 2.5590" |
| H1 -?˜Chuck Thickness?˜(Decimal Inch) | 2.9530" |
| h -?˜(Decimal Inch) | 0.2000" |
| Z-d - Bolt Quantity and Size | 3-M10 |
| RPM Max. Speed | 2000 |
| TIR | 0.0039 |
| Number of Jaws | 3 |
