| Brand | Quality Imports |
| MPN | 202-5433 |

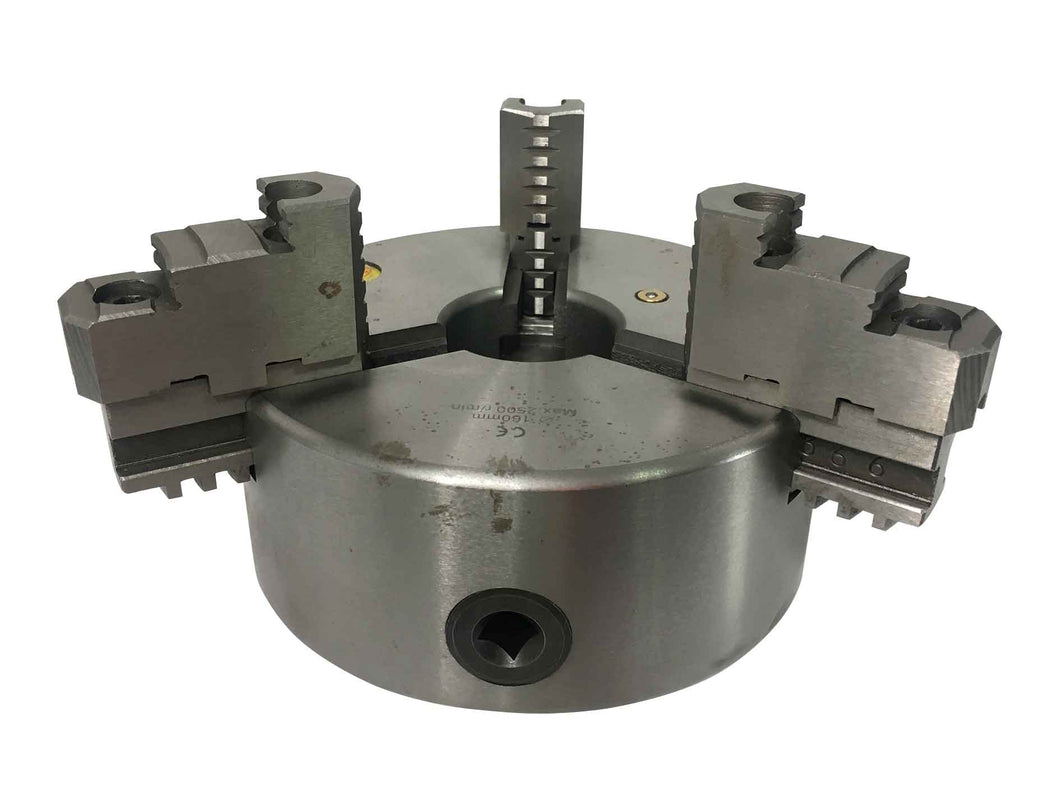

| Lathe Chuck Category |
Self Centering Scroll Chucks |
| Mounting | Plain Back |
| D - Chuck Size (Decimal Inch) | 6.0000" |
| D1 -???(Decimal Inch) | 5.1180" |
| D2 -???Bolt Circle Diameter (Decimal Inch) | 5.5910" |
| D3- Thru Hole Size???(Decimal Inch) | 1.7720" |
| H1 -???Chuck Thickness???(Decimal Inch) | 2.5590" |
| h -???(Decimal Inch) | 0.2000" |
| Z-d - Bolt Quantity and Size | 3-M8 |
| RPM Max. Speed | 2500 |
| TIR | 0.0030" |
| Number of Jaws | 3 |
