| Brand | Quality Imports |
| MPN | 202-5435 |

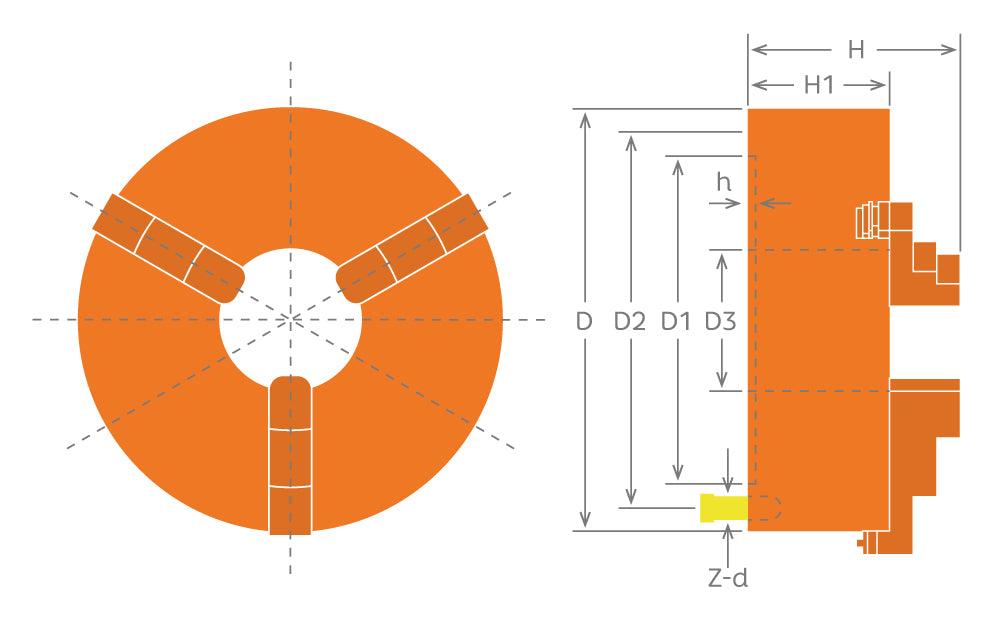

| D - Chuck Size (Decimal Inch) |
10.0000"?˜ |
| D1 -?˜(Decimal Inch) | 8.1100" |
| D2 -?˜Bolt Circle Diameter (Decimal Inch) |
8.8980" |
| D3- Thru Hole Size?˜(Decimal Inch) | 3.1500" |
| H1 -?˜Chuck Thickness?˜(Decimal Inch) | 3.1500" |
| h -?˜(Decimal Inch) | 0.2000" |
| Z-d - Bolt Quantity and Size | 3-M12 |
| RPM Max. Speed | 1600 |
| TIR | 0.0039 |
| Number of Jaws?˜ | 3 |
