MPN:?ÿPA35/120-480

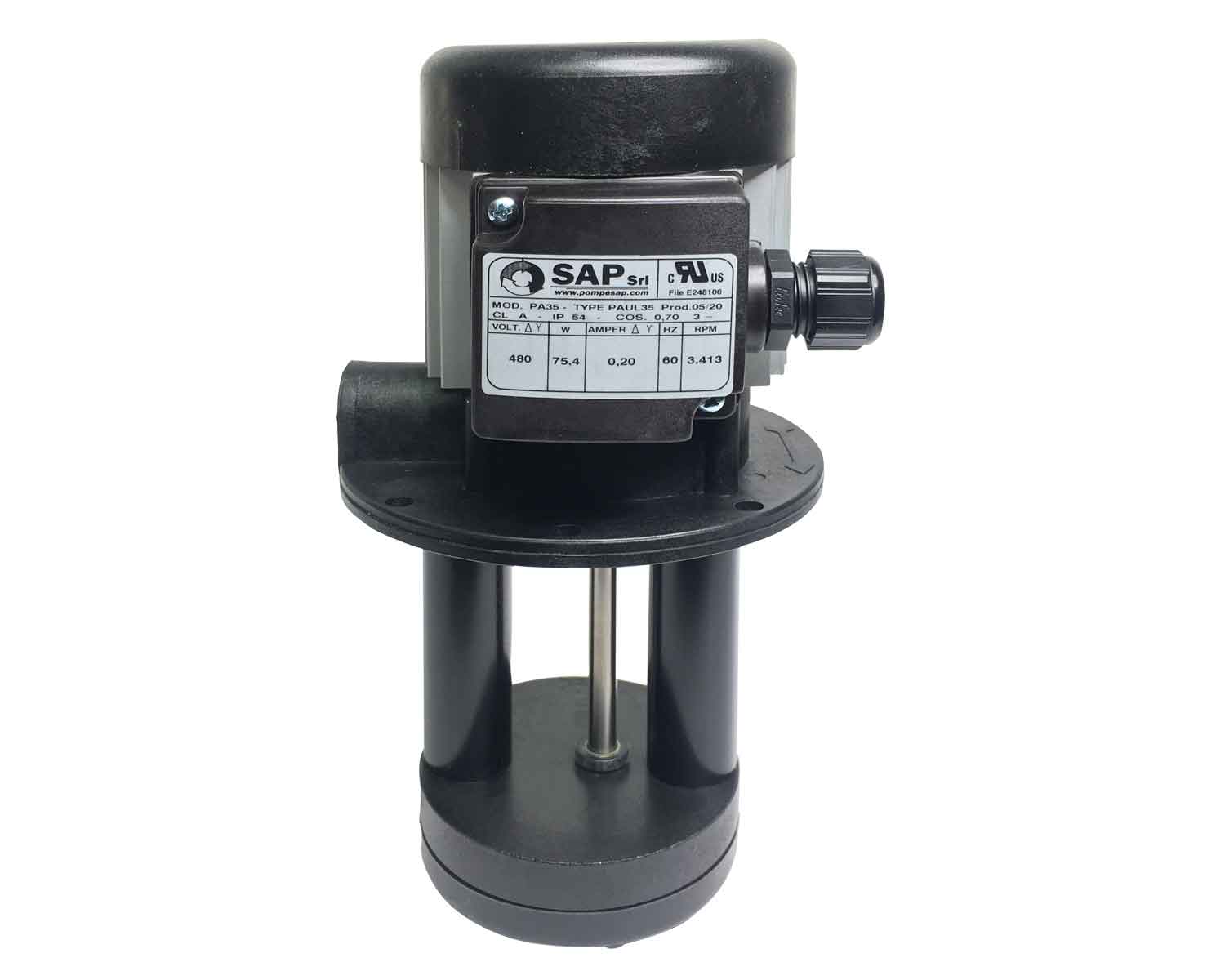

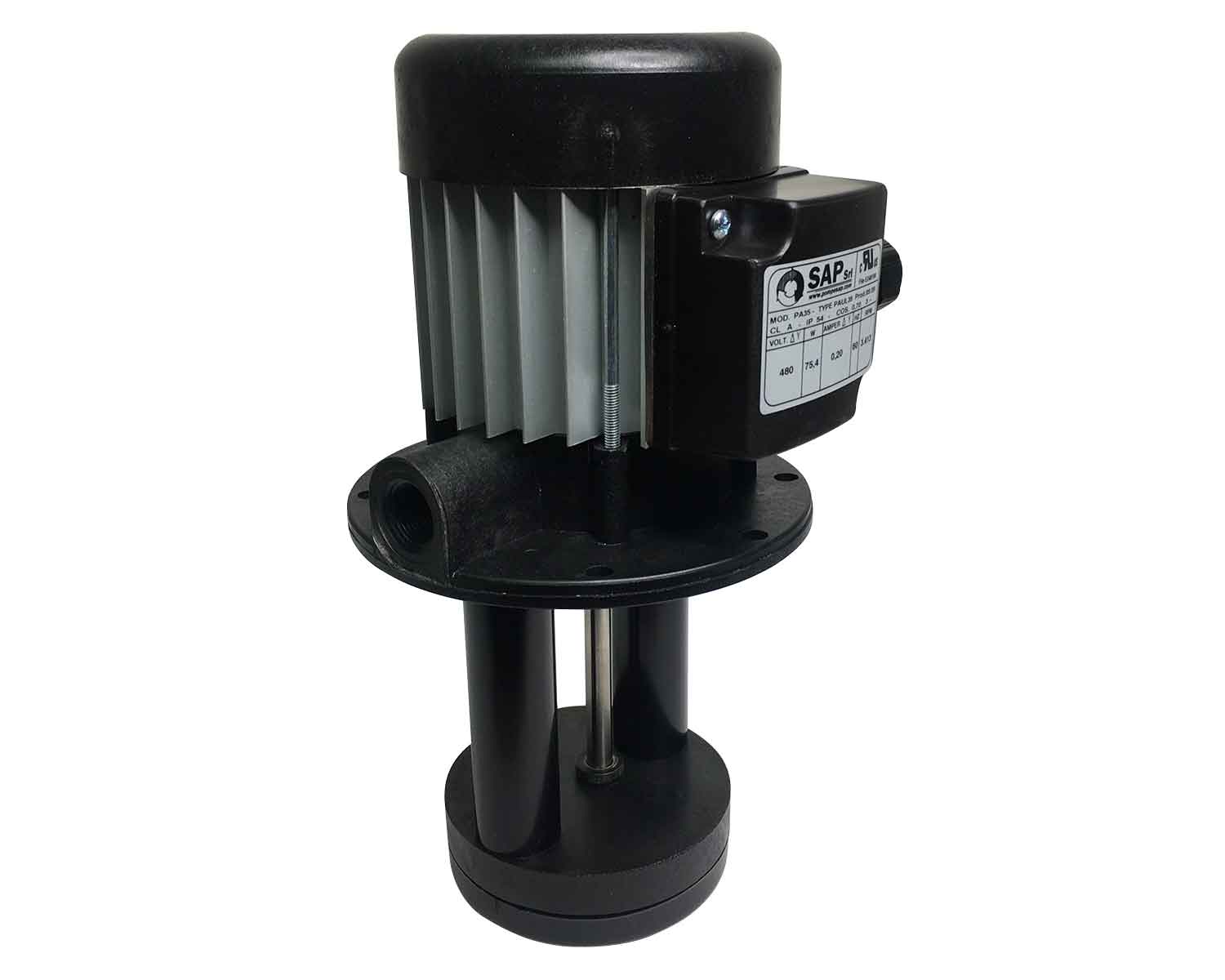

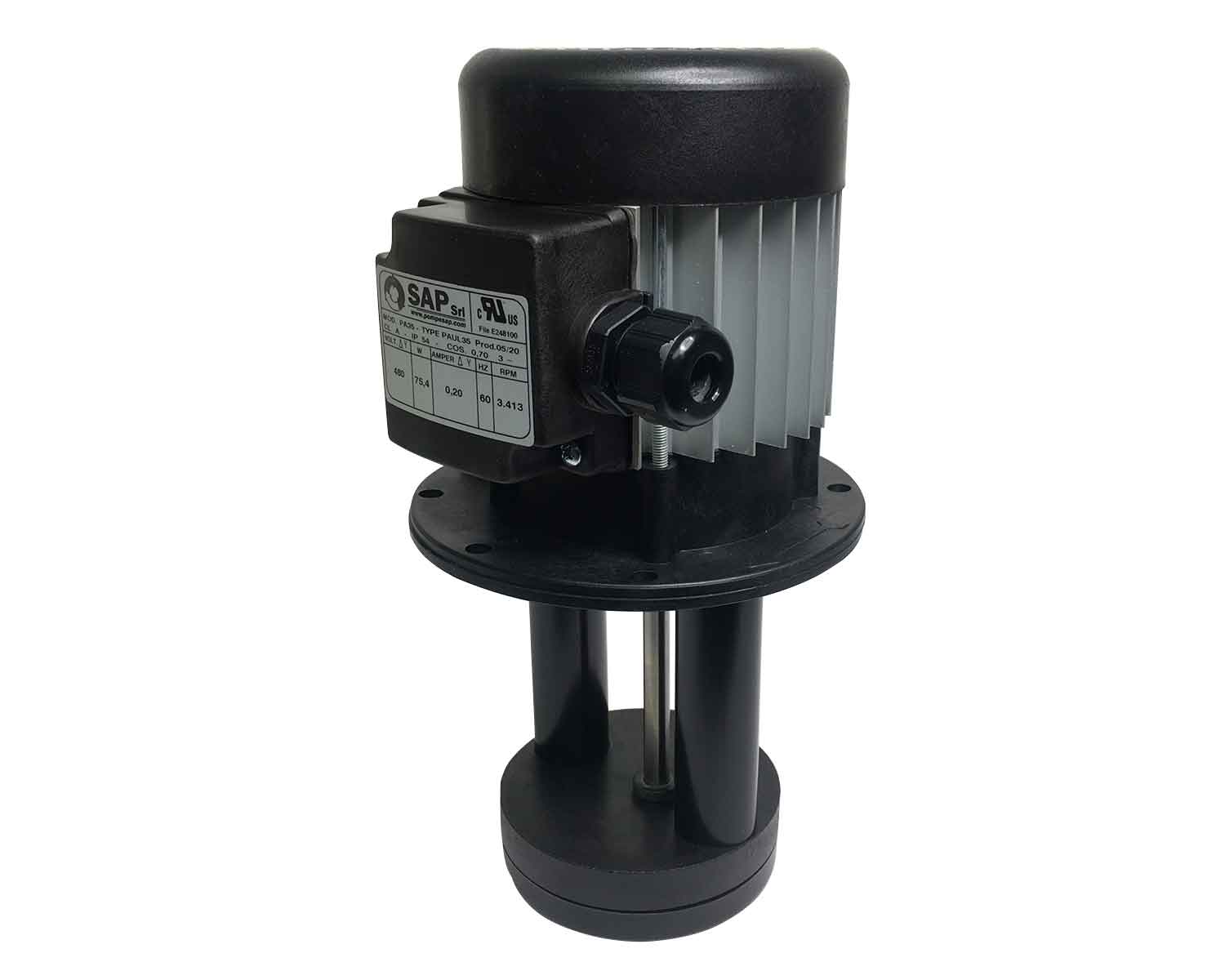

This pump can go on various types of machines including Band Saws. Part No. 028.1052.1
Technical features and performances
- Specific motor-driven pump for machine tools
- Motor-driven pump with dip tube without sealing rings.
- Three-phase PA type and single-phase PA-M type insulated in CL.F. motor
- Degree of protection against the penetration of liquids: IP 54.
- Extruded aluminium casing protected from anodic oxidation
- AISI 303 stainless steel crankshaft
- CW long-life bearings in semi-rigid supports: almost total absorption of?ÿvibrations and noise.
- Parts of the motor are made of non-flammable thermoplastic material in?ÿaccordance with the following standards: VDE 0730 and UL 94
- The PA 35M -PA 70M type motor-driven pumps can have the following input?ÿvoltage: V 220/240/50 or V 380/400/50
Various notes and warnings
- The motor-driven pump can run properly even in the presence of small foreign?ÿbodies in the recirculation liquid
- The inlet pipe of the motor-driven pump is compatible with the quick-fit?ÿcouplings
Measurements
| A: | 120mm |
| B: | 127mm |
| C: | 96mm |
| D: | 87mm |
| E: | 3/8" |
| HP/KW | 0.12/0.09 |
