Specs
| Brand | Dorian Tool |
| Manufacturers Part Number | 73310158324 |
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Toolholder Style | S-MTHO-C |
| Series | On Edge Jet-Stream |

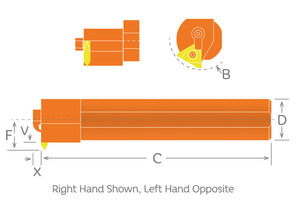

| B -???Minimum Bore Diameter (Decimal Inch) | 3.7500 |
| C -???Overall Length (Inch) | 16" |
| C -???Overall Length (Decimal Inch) | 16.0000 |
| C -???Overall Length (mm) | 406.40 |
| D - Shank Width/Diameter (mm) | 63.50 |
| D - Shank Width/Diameter (Decimal Inch) | 2.5000 |
| D - Shank Width/Diameter (Inch) | 2-1/2" |
| F -???Center to Cutting Edge (Decimal Inch) |
1.6870 |
| V -???Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| X???(Decimal Inch) | 0.2500 |
| Insert Compatibility | TNMC-543 |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Insert Holding Method | Screw or Clamp |
| Insert Torx Screw | GTS-3 |
| Torx Key | T-20 |
| Clamp | CL-20 |
| Clamp Screw | XNS-47 |
